Xpass S2

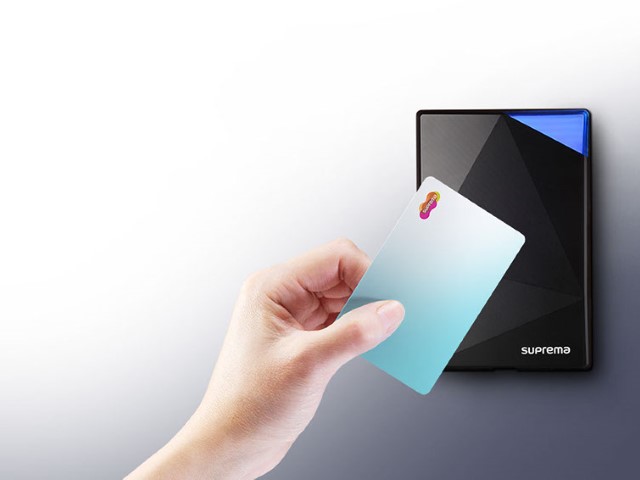

Xpass S2 effortlessly combines key features of a traditional access control system in an ultra slim form factor and is a cornerstone in Suprema’s distributed IP access control system. Xpass S2 is designed to withstand a wider temperature range and can read multiple smartcard technologies making it an ideal product for harsh weather environments.
The Xpass S2 features innovative multi-smartcard support. This new feature gives Xpass S2 the ability to read multiple formats from Mifare, DesFire, ISO14443A/B, ISO15693, to Felica.
Xpass S2’s profile is only 11.4mm thick, creating a slim aesthetic look when installed. Tailored to fit a standard US/EU/ASIA gang box, Xpass S2 allows for quick and easy installations.
Xpass S2 has been comprehensively sealed
against invasive moisture, dust and liquid.
Featuring IP65-rated protection, meticulous
sealing, and extra protective engineering, it is
ensured that Xpass S2 will operate with
unmatched reliability in all types of
installation environments.
Adaptive temperature control allows Xpass S2 to operate in extreme cold temperatures as well as extreme hot environments.
(Operational temperature -35°C to 65°C)
Main | Biometric | - | |
IP Rating | IP65 | ||
RF Option | 13.56MHz Mifare/DESFire/Felica | ||
Multi-Controller | Yes | ||
Capacity | Max. User (1:1) | 50,000 | |
Max. User (1:N) | 50,000 | ||
Max. Template (1:1) | - | ||
Max. Template (1:N) | - | ||
Max. Text Log | 100,000 | ||
Max. Image Log | - | ||
Interface | WiFi | - | |
TCP/IP | Yes | ||
RS-485 | 1ch Host or 1ch Slave (Selectable) |
||
RS-232 | - | ||
Wiegand | 1ch In or 1ch Out (Selectable) |
||
Input | 2 Inputs | ||
Relay | 1 Relay | ||
USB | - | ||
SD Card Slot | - | ||
Hardware | CPU | 533MHz DSP | |
Memory | 16MB RAM + 16MB Flash | ||
LCD | - | ||
LED Indicator | Multi-Colour | ||
Sound | Multi-tone Buzzer | ||
Operating Temp. | -35° to 65°C | ||
Tamper | Yes | ||
Power | 12VDC | ||
PoE | - | ||
Dimensions | 80 x 120 x 11.4 (WxHxD mm) | ||
Certificates | CE, FCC, KC, RoHS, REACH | ||
Compatibility | BioStar 1.x | Yes | |
BioStar 2 | Yes | ||
